Simple Metallic Pipe Detector
Here is a simple circuit diagram project of metallic pipe detector circuit. This circuit uses a 15-kHz oscillator coil.

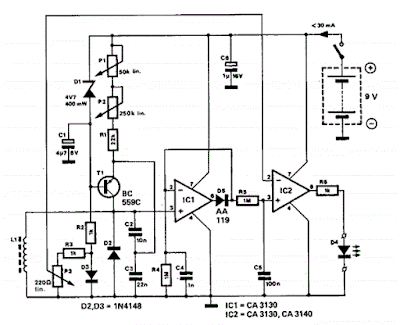

Simple Metallic Pipe Detector Circuit Diagram:
When metal placed ixi the energy field is withdrawn, the oscillator voltage is rectified and compared to a reference. A drop in oscillator voltage therefore operates comparator IC2 and D4 (LED) extinguishes. L1= 500 turns enameled copper wire. 0.2 - 0.3mm diameter. on ferrite rod 200mm long and 10 mm diameter.
Simple Metallic Pipe Detector Circuit Diagram:
When metal placed ixi the energy field is withdrawn, the oscillator voltage is rectified and compared to a reference. A drop in oscillator voltage therefore operates comparator IC2 and D4 (LED) extinguishes. L1= 500 turns enameled copper wire. 0.2 - 0.3mm diameter. on ferrite rod 200mm long and 10 mm diameter.
